Microsoft Dynamics AX 2012 Manufacturing – Lean IoT Scenario Part 1: Functionality/Make to Order

Microsoft Dynamics AX 2012 Manufacturing – Lean IoT Scenario Part 1: Functionality/Make to Order



Purpose: The purpose of this document is to illustrate a classic Make to Order Lean Manufacturing scenario in Microsoft Dynamics AX 2012 on simplified example when manufacturing motorcycles. This document will outline end-to-end functional flow for the scenario from initial setup all the way to Lean costing.

Challenge: Microsoft Dynamics AX 2012 out-of-the-box enables mixed mode manufacturing including discrete, process, project and Lean approaches. The goal will be to establish an end-to-end functional flow for Make to Order Lean Manufacturing scenario, better understand what it takes to do it. And then automate this scenario for the future use in a broader Lean IoT Demo scenario using IoT devices and the power of Microsoft Windows 10 IoT Core OS.

Solution: The simple but at the same time descriptive real-world example of motorcycles manufacturing provides a necessary context for better understanding of manufacturing processes and their implementation in Microsoft Dynamics AX. In particular we will be dealing with simple bill of materials which will consist of 2 components and straightforward production flow with 2 activities (one transfer and one process) to supply one of the components in order to implement Make to Order scenario.



For more detailed explanation of Make to Stock Lean Manufacturing scenario please refer to my earlier blog here: http://ax2012manufacturing.blogspot.com/2012/12/microsoft-dynamics-ax-2012_2.html



Walkthrough



In this scenario Motorcycle will be manufactured using Lean approach. Motorcycle components (Body and Wheels) will be assembled together in a work cell. But before this happens one of components (Wheels) will have to be supplied into Part location from General storage location by Water spider, once this happens Work cells worker will be able to pick a part from replenished Part location and use it for assembly. For the sake of simplicity another part (Body) is considered to be available for picking in its own location (the assumption is that it is available in on-hand inventory)



BOM	Production flow
<![if !vml]><![endif]>	<![if !vml]><![endif]>



Please note that the idea is to replenish Wheels from General storage location (Warehouse 11) into Part location (Warehouse 12). Body will be picked directly from its Part location (Warehouse 12). And the finished product AlexMotorcycle will be put into Finished product location (Warehouse 13). I used Warehouses instead of Locations (potentially within the same warehouse) only for the sake of clarity. Please see the diagram below for a visual explanation of the scenario.



Diagram



<![if !vml]><![endif]>



On the visual diagram 3 Workcell workers work in their respective Work cells, and Water spider is helping them with replenishment of each Part location to support a continuous manufacturing process without extra distractions.



One of the requirements defined in this scenario is that all products are Standard cost controlled.



Section: Setup



Let's review the setup which is required to implement this scenario



We'll start with introduction of products for a finished good (AlexMotorcycle) and its components (Body and Wheels)



Released product: AlexMotorcycle





Released product: AlexMotorcycle – Default order settings





Please note that Default order type = Kanban



Released product: AlexMotorcycle – Site specific settings





Cost price for AlexMotorcycle is 3000$



Released product: AlexMotorcycle – Cost price





Production type = BOM



Released product: AlexMotorcycle – Production type (BOM)





First of AlexMotorcycle components is going to be Body



Released product: Body





Released product: Body – Default order settings





Released product: Body – Site specific settings





Cost price for Body is 2500$



Released product: Body – Cost price





Finally another component of AlexMotorcycle is going to be Wheel(s)



Released product: Wheel





Released product: Wheel – Default order settings





Released product: Wheel – Site specific settings





Cost price for Wheel is 250$



Released product: Wheel – Cost price





Now as we introduced all necessary Released products let's take a quick look at their list



Released products





Next step will be to introduce Resource groups



Resource group: AlexMotor





Please note that AlexMotor resource group will be a Part location which will be Replenished by the Water spider



Resource group: AlexMotor – Workcell capacity





We are going to need one more Resource group for this scenario



Resource group: AlexGeneral





Please note that AlexGeneral resource group will be a General storage location which will be Replenishing location for Water spider. By other words, Water spider will transfer parts from AlexGeneral location (Replenishing) into AlexMotor location (Replenished) to supply Work cell worker with required parts.



Now we'll define BOM structure for AlexMotorcycle



BOM – Designer view: AlexMotorcycle





BOM – Lines view: AlexMotorcycle





Please note that the consumption of components will happen from Warehouse 12. In the case with Wheels Part location (Warehouse 12) will first be replenished by Water spider from General storage location (Warehouse 11).



Then we can define Production flow model and production flow



Production flow model: AlexModel





Production flow: AlexMotorcycle





Production flow version details: AlexMotorcycle





Please note that I changed Takt unit = Hr



Then we'll run Activity generation Wizards to generate activities for Transfer and Process



Production flow: Activity = Replenish (Welcome)





Production flow: Activity = Replenish (New activity)





Production flow: Activity = Replenish (Create transfer activity)





Please note that Replenishing location is AlexGeneral and Replenished location is AlexMotor as it was described above



Production flow: Activity = Replenish (Assign transfer locations)





Please note that because I've selected Replenishing and Replenished work cells on the previous step, the appropriate Warehouse and Location settings where automatically populated for me based on Resource group (Work cell) data



Production flow: Activity = Replenish (Assign activity time)





Please note that I assigned 0.25 hr as Runtime activity time



Production flow: Activity = Replenish (Wizard completed)





This is how Replenish Transfer activity looks like



Production flow: Activity = Replenish





Production flow: Replenish – Activity details





Now we'll introduce the second Process activity which will represent assembly step



Production flow: Activity = Assembly (Welcome)





Production flow: Activity = Assembly (New activity)





Production flow: Activity = Assembly (Create process activity)





Production flow: Activity = Assembly (Assign picking activities)





Please note that component Wheel will be picked from its Part location (Warehouse 12)



Production flow: Activity = Assembly (Assign activity time)





Please note that I assigned 0.25 hr as Runtime for this activity



Production flow: Activity = Assembly (Wizard completed)





Now we can review a newly created activity



Production flow activity: Assembly





Next step will be to define a relationship between Transfer and Process activity because logically Transfer of necessary component(s) must take place before Process activity will begin



Create activity relation





Now we can review activity details



Production flow activity: Assembly – Activity details





At this point we'll be back to the Production flow to validate it



Validate





Infolog





After successful validation we can activate Production flow



Activate





Infolog





Now Production flow has been successfully activated



Production flow: AlexMotorcycle





At this point we can introduce Kanban rules which will drive kanbans creation



First we'll create Withdrawal Kanban rule to generate Withdrawal kanban to replenish Part location for Wheel(s)



Kanban rules - Withdrawal





Kanban rules – Withdrawal (Events)





Please note that Kanban line event = Automatic which means that if Kanban line requirement (for Wheels) in order to produce a finished good BOM, the appropriate kanban will be created automatically



Kanban rules – Withdrawal (Production flow)





Please notice Receipt location to be a Part location (Warehouse 12) as expected



Now we'll create Manufacturing Kanban rule to describe the actual assembly process



Kanban rules - Manufacturing





Kanban rules – Manufacturing (Events)





Please note Sales event = Automatic. This makes perfect sense because we are establishing a classic Pull-based Make to Order scenario, so when a new Sales order is placed this will automatically trigger a creation of Manufacturing kanban to produce a finished good



Kanban rules – Manufacturing (Production flow)





Please notice that Receipt location is a Finished good location (Warehouse 13) as expected



Now before we process with execution of this scenario we want to make sure that we have enough on-hand for Wheel(s) components in Warehouse = 11 (because we first need to transfer parts to Warehouse 12), and also Body components in Warehouse 12. I simply used Inventory adjustment journal to introduce necessary levels of on-hand



Posted journal lines





At this point we are ready to begin scenario execution



Section: Creation



We'll begin with placing a new Sales order for AlexMotorcycle



Sales order





Please note that AlexMotorcycle finished product is expected to be in a Finished good location (Warehouse 13). After we save Sales order the system based on Kanban rules in place will automatically create necessary kanbans. We can review created kanbans by opening Pegging tree form



Pegging tree





As you can see according to Kanban rules 2 Kanban jobs will have to be completed to produce AlexMotorcycle, one for Transfer and another one for Process



Pegging tree - Kanban





The following view shows that Transfer (Replenish) of Wheel part is required before Process (Assembly) may take place. You can clearly see it in Pegging details



Kanban





The view below shows what is necessary for Transfer to take place



Pegging tree - Kanban





Kanban





Let's take a quick look at Inventory transactions at this point



Inventory transactions





The next step will be to either manually plan or automatically plan Process activity. I'll do automatic planning by clicking "Plan the entire pegging tree"



Plan pegging tree





Now my kanban job shows status Planned as expected

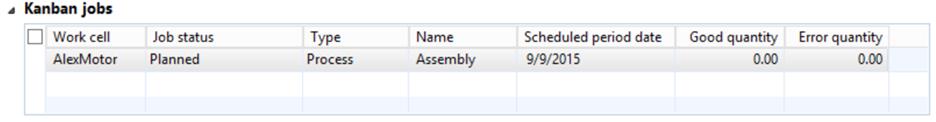

Pegging tree – Kanban (Kanban jobs)





Then we are almost set to begin manufacturing activities

First we'll need to take care of the Transfer for Wheels, so we'll go ahead and launch Transfer jobs board



Transfer jobs board – Filter jobs





Here we'll see a Transfer job listed with its details



Transfer jobs board





Transfer jobs board – Tabs (Details)





Transfer jobs board – Tabs (Picking list)





Please note that because we've introduced enough on-hand for Wheels in advance Supply status indicates a green light for picking



Transfer jobs board – Tabs (Pegging)





Now let's check out Process jobs and we'll begin with launching Planning board to verify that Process job has been successfully planned for execution



Planning board – Workcell selection





Excellent, Process job is planned for one of days on the board



Planning board





Now we'll launch Process jobs board to see Process job there



Process jobs – Workcell selection





Process jobs board





Process jobs board – Tabs (Details)





Process jobs board – Tabs (Production instructions)





Process jobs board – Tabs (Picking list)





Please note that Body is available for picking, but Wheels are not. This is because we haven't completed a necessary transfer yet



Process jobs board – Tabs (Pegging)





And Pegging details clearly indicated that there's Replenish Transfer activity to be done



Now let's take a look at Kanban details and please note how Kanban Process job is referencing Sales order on the screen below



Kanban – Source requirements details





One more composite view of Process job and associated Transfer job is presented below



Process jobs board





Now we can finally begin the execution of the scenario



Section: Execution



We'll begin with Starting Transfer job first



Transfer – Start





Here's how inventory transactions look like after this step



Inventory transactions





Then we'll complete Transfer



Transfer – Complete





Here's how inventory transactions look like after this step



Inventory transactions





As we complete Transfer now we have enough Wheels in its Part location for Workcell worker to begin Assembly process



Process job





And this is what we are going to do next. We'll do Prepare step now



Process job – Prepare





And again we'll take a look at inventory transactions



Inventory transactions





Then we'll start Process job



Process job – Start





And review how inventory transactions changed after this step



Inventory transactions





And finally we'll Complete Process job



Process job – Complete





And also review how it was reflected in inventory transactions this time



Inventory transactions





After we produced a finished good we can review on-hand inventory for AlexMotorcycle in Finished goods location (Warehouse 13)



On-hand





And because we have produced the product we can now send it to the customer



Sales order – Packing slip and Invoice





This is how inventory transactions will look like after we update Sales order Packing Slip and Invoice



Inventory transactions





The very last step will be to run Lean costing routine to cost the production flow



Section: Costing



Cost the production flow





Prompt





Please note that no further registrations of kanban jobs will be possible after the date costing, but that's fine for the sake of this demo



Now we can review the results of Backflush costing calculation



Backflush costing calculation





Standard cost transactions





Unused quantities





WIP Balances (Price calculation)





And take a final look at inventory transactions



Inventory transactions





Summary: In this walkthrough I illustrated how to establish a classic Make to Order Lean Manufacturing scenario in Microsoft Dynamics AX 2012. We went through the process of setting up data, creation of initial demand, manufacturing process and Lean costing. In the next parts I'll focus on how to use IoT devices and the capabilities of Windows 10 IoT Core OS to fully automate this functional scenario using the concept of "Intelligent" location and provide the environment for workers to solely focus of their manufacturing tasks in order to deliver the best quality products for customers.



Tags: Microsoft Dynamics AX 2012 R3, Lean Manufacturing, Pull, Kanbans, Kanban rules, Production flow.



Note: This document is intended for information purposes only, presented as it is with no warranties from the author. This document may be updated with more content to better outline the issues and describe the solutions
